aa-holdfast

Sovereignty hub fuel, orbital skyhook theft windows and mercenary den sites for Alliance Auth, on the Equinox ESI routes. Warns Discord before a hub runs dry or a skyhook becomes lootable, and finds dens siphoning your workforce that ESI will not show you directly.

Screenshots use a demo install with invented systems and characters. Regenerate with docs/demo_seed.py.

Install

pip install aa-holdfast

Add to the end of myauth/settings/local.py:

if not any(app == "eveuniverse" or app.startswith("eveuniverse.") for app in INSTALLED_APPS):
    INSTALLED_APPS += ["eveuniverse"]
INSTALLED_APPS += ["holdfast"]

from holdfast.schedule import CELERYBEAT_SCHEDULE as HOLDFAST_SCHEDULE
CELERYBEAT_SCHEDULE.update(HOLDFAST_SCHEDULE)

Then:

python manage.py migrate
python manage.py collectstatic --noinput
supervisorctl restart myauth:

That is the whole install. The version running shows beside the page title on every Holdfast page, so nobody needs Django admin to answer "which one is this". Three things worth knowing:

• eveuniverse must be in INSTALLED_APPS, exactly once. This app has foreign keys into its models, so leaving it out stops Auth from starting -- and so does listing it twice: Django refuses duplicate apps. aa-structures and several other apps add it too, some by its AppConfig path (eveuniverse.apps.EveUniverseConfig), hence the check above.
• No eveuniverse preload. Types, systems and planets are fetched as they are first seen.
• 11 scheduled tasks come from holdfast.schedule. Merging the dict beats pasting eleven entries: a missing one does not error, it silently removes a feature. Retune one afterwards with CELERYBEAT_SCHEDULE["holdfast_update_all_owners"]["schedule"] = crontab(...), or read holdfast/schedule.py for what each does.

Requires Alliance Auth 5.2 or later 5.x (CI runs 5.2, 5.4 and the latest release), django-esi 9.10 or 10.x (9.10 is the oldest CI tests), django-eveuniverse 2.0+, dhooks-lite, PyYAML.

Your EVE developer application (developers.eveonline.com, the one Auth's ESI_SSO_CLIENT_ID belongs to) must have these four scopes enabled, or the SSO step fails:

Scope	Used for
esi-structures.read_corporation.v1	sovereignty hubs and skyhooks (corporation token)
esi-structures.read_character.v1	a member's own mercenary dens
esi-activities.read_character.v1	tactical operations on those dens
esi-characters.read_notifications.v1	"your den is being shot"

Setup

1. Register a corporation. Grant yourself manage_owners; a Tokens tab then appears beside Settings in every section, and Add corporation there takes you through EVE SSO. These are corporation endpoints: the character needs the in-game Station Manager role, and an executor's token does not reach member corps. Every corp holding hubs or skyhooks registers its own. The first registration also decides the tracked alliance (below). The Tokens page shows what is tracked, and an Enable / Disable button on each corporation switches it off without deleting anything: its structures leave every page, badge and alert while it is off and come back when it is on.

An aa-structures token will not do. That app holds esi-corporations.read_structures.v1; these routes need esi-structures.read_corporation.v1. Similar names, different scopes — the Add button mints the right one.

2. Add a Discord webhook on the Webhooks page — beside Tokens in every section's header, open to any section manager; Django admin uses the same form — then pick which alerts go where on each section's settings page. Send test on a webhook posts one sample to that channel alone, pings included.

3. Grant permissions — see Permissions.

One tracked alliance per install. The first corporation registered decides it (an upgrade picks the alliance most registered corporations are in); the Tokens page shows it, and a SOV manager can change it on the SOV settings page. Corporations outside it cannot be registered and are never synced — a member with a Station Manager alt in another alliance cannot pull that alliance's whole sovereignty map onto your dashboard. A corporation with no alliance may be registered by a member of the tracked alliance. To follow a second alliance's sovereignty alongside, list it in HOLDFAST_TRACK_EXTRA_ALLIANCE_IDS; its corporations may then be registered too. Settings, thresholds and Discord channels are still one set per install, and Django admin bypasses the registration guard. Scope follows the corporation's alliance as Auth records it: registration refreshes that record from ESI first, and Auth refreshes it on its own schedule after that. Two alliances wanting separate warnings should run a second Auth.

Permissions

One bottom rung for the whole app, then a ladder per section where every rung includes the ones below it — grant one per section, never two.

Section	Member	User	Officer	Manager
All sections	basic_access	—	—	—
Sovereignty	—	—	sov_officer	sov_manage
Skyhooks	—	—	skyhook_officer	skyhook_manage
Dens	—	den_member	den_officer	den_manage

basic_access opens the member-facing page of each section: System Cost, Raid Targets, and your own dens and timers. A den user may also apply for a den slot — permission to anchor in your space. manage_owners registers and switches corporation tokens and sits outside the ladders; someone who holds only that gets the SOV Monitor entry, which leads to the Tokens page. Den characters need none of it: each player registers their own.

Holdfast declares only these nine. Its models carry none of Django's add/change/delete/view permissions, so Django admin is for superusers.

Put basic_access on your Member state rather than a group: it covers only what any member should see, and a state follows membership, so nobody has to be pruned later. Officers see the whole tracked alliance, not one corporation; see Design notes. A typical split:

Who	Grant
Member state	basic_access
Den operators	den_member
Den officers	den_officer
Sov fuel team	sov_officer
Skyhook team	skyhook_officer
Leadership	sov_manage, skyhook_manage, den_manage, manage_owners

charlink

With aa-charlink installed, Holdfast adds one entry to its page, ticked by default, asking for all four scopes above. Linking a character registers:

What	When
a den character	for anyone with den access (basic_access or a den permission); one with nothing to sync is re-checked every HOLDFAST_DEN_IDLE_HOURS
its corporation, as on the Tokens page	only for a manage_owners holder, only inside the tracked alliance, and only if the corporation is not registered yet

A registered corporation keeps its token character; switching it is done on the Tokens page. charlink stores an entry's default the first time it sees it, so migration 0013 (0.1.10) flipped the stored default to ticked once. Untick it in charlink's admin and it stays off.

What it does

Three sidebar entries sharing one sync layer, one rate-limit budget and one set of tokens.

SOV Monitor

Page	Who sees it
Dashboard, Hub Fuel, ADM, Timers	officer
System Cost	any member
Settings	manager

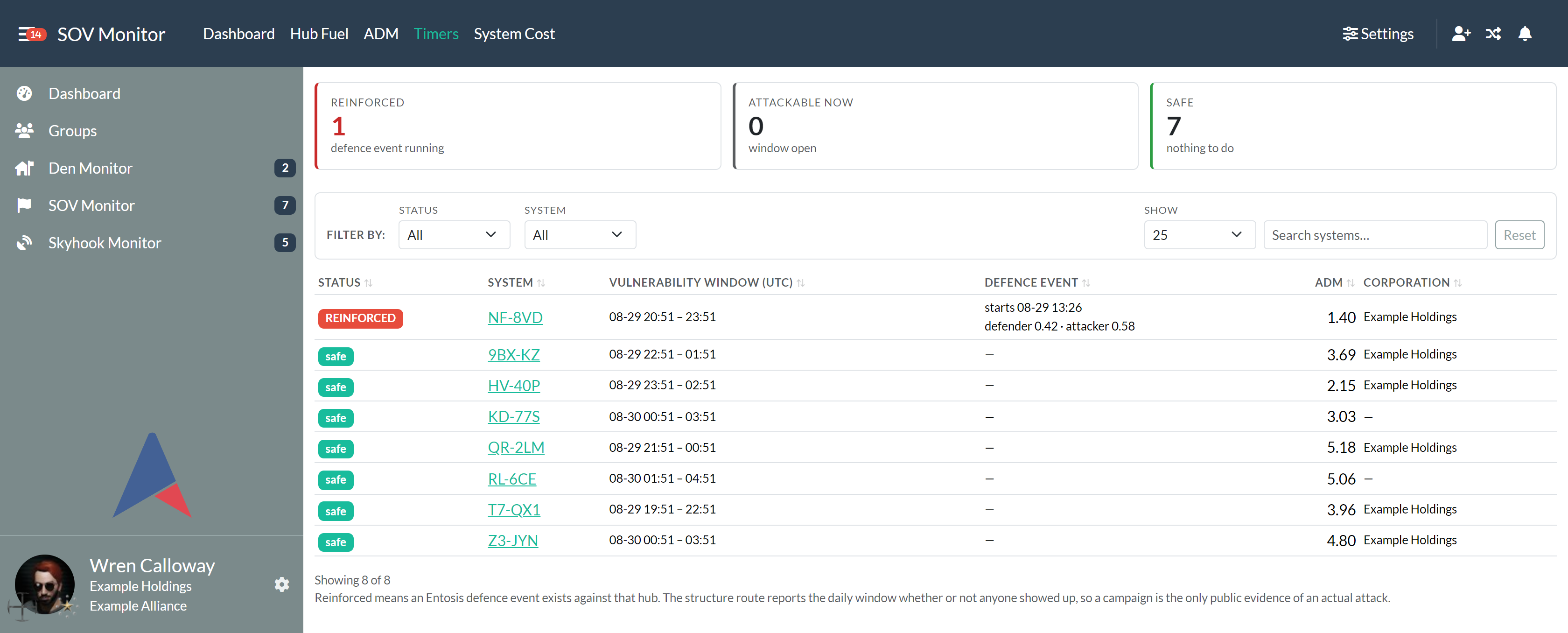

The hub detail route carries no state field, so a running Entosis defence event is the only public evidence a hub is actually under attack. Green is safe, amber is inside its daily window, red has a campaign against it.

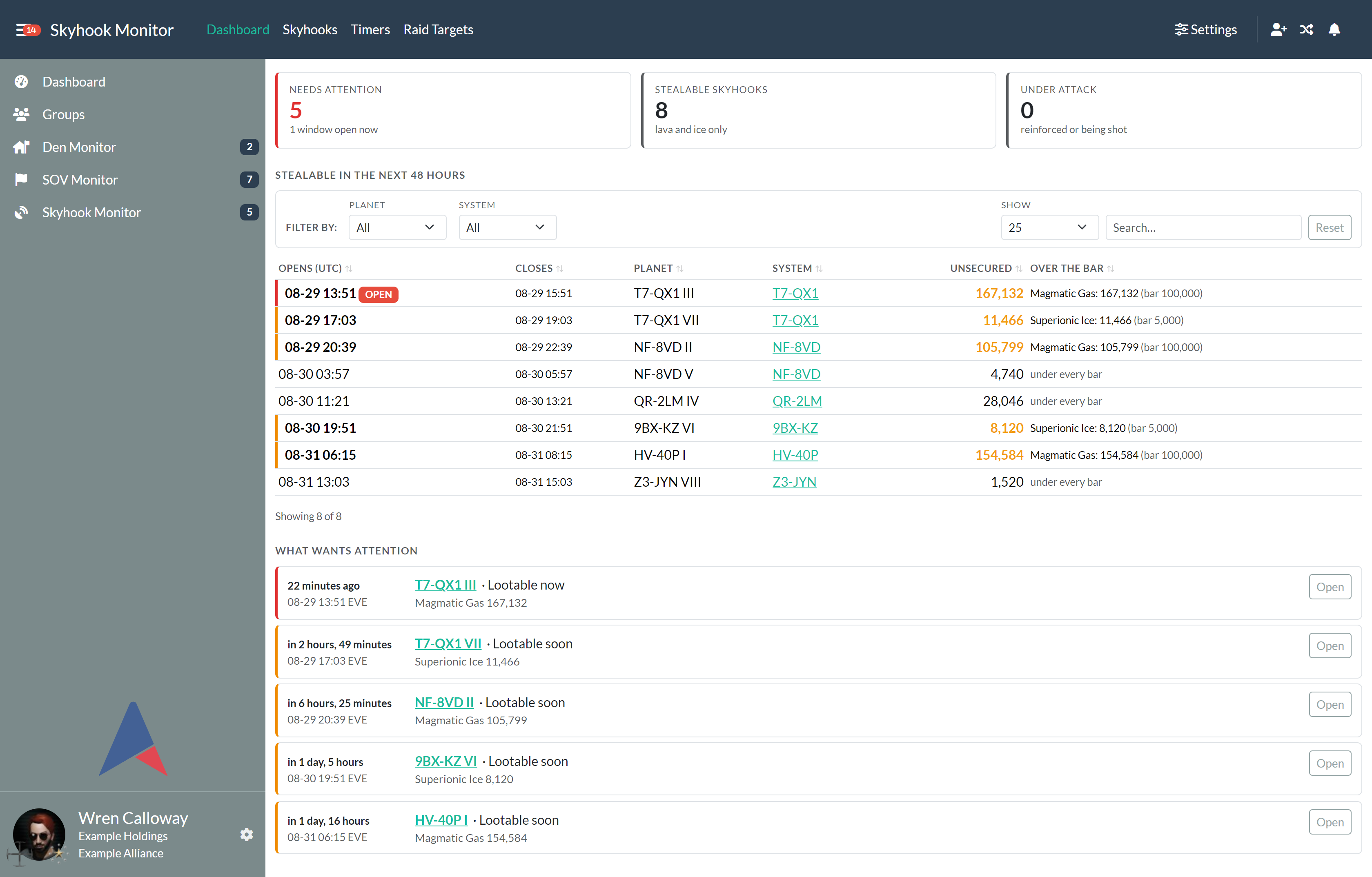

Skyhook Monitor

Theft windows inside a configurable horizon, amber where a reagent is over its own bar. Only skyhooks holding reagents appear — workforce and power flow straight to the hub, so there is nothing on the others to steal. On a 413-skyhook alliance that is 51 rows rather than 413.

Each reagent gets its own threshold, because they are not worth the same trip: one alliance's magmatic gas median was 30,780 against 3,840 for superionic ice.

Den Monitor

Every den route in ESI is character scoped — no corporation or public equivalent, and no notification for "somebody anchored a den next to your skyhook". So:

• Your own dens sync from each operator's token.
• Everyone else's are recorded by hand, friendly or hostile. A hand record is superseded automatically the day its operator registers a token.
• Dens taking your workforce are found two ways. An untouched skyhook always reports a workforce figure that is a round multiple of ten; a percentage off it usually is not, which needs no history at all (measured). When the base was a multiple of a hundred that tell is absent, and the ratio against a peak this app recorded itself gives it away instead (inferred).

Den sites are the temperate-planet skyhooks you hold; slots appear on their own. A member joins a group, claims a free slot through EVE SSO, a manager approves, and the den syncs once anchored. Managers can revoke — which does not unanchor anything, so the slot says revoked, den still up until it comes down. Claims are decided on the den admin page, which tells the member; Django admin shows a claim's status but will not change it.

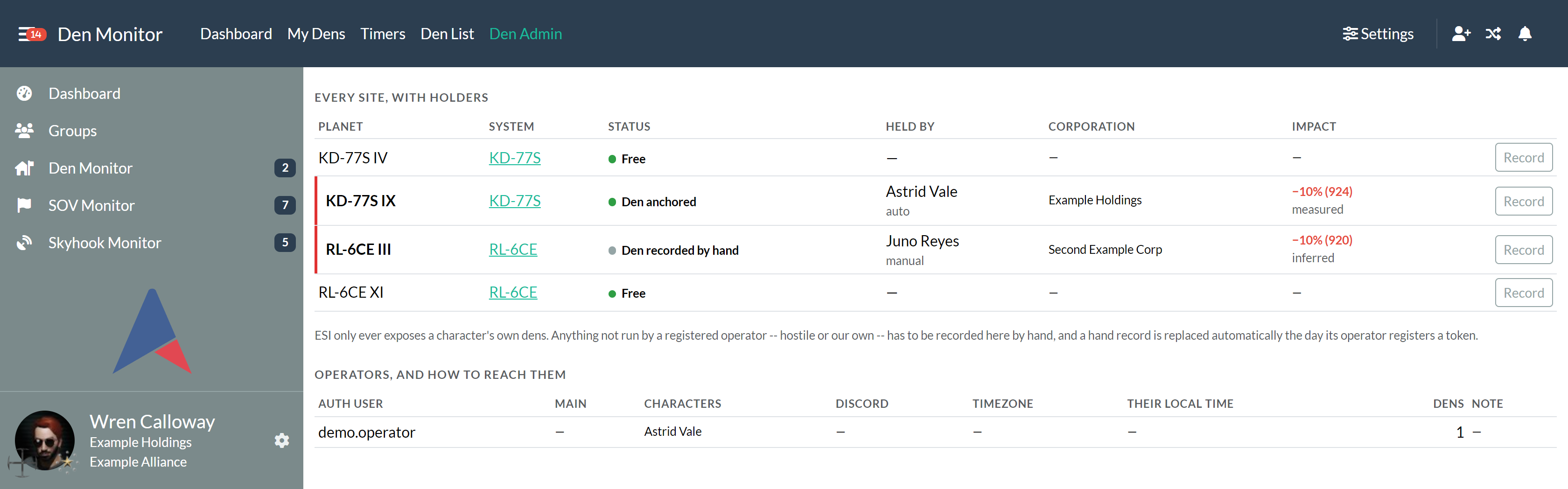

The den admin page lists the people to contact: whoever runs a den or holds a pending or approved claim on the ground that officer sees — not every character registered, which with charlink is most of the alliance's alts. Someone who loses den access (leaves, or drops to a state without it) leaves that list and their characters stop being polled; their records stay, and they pick up again if access comes back.

Tactical operations on your own dens appear on the den dashboard and the sidebar badge, and are announced to Discord, once the den is at the anarchy level set on the den settings page — 2 by default, since below that nobody runs them; 0 counts every operation. An operation on a den below the bar is announced the day the den reaches it. Ignore on a dashboard row takes that one operation off your own dashboard and badge and nothing else. Both the rows and the badge count need the dashboard (den_member or above); with basic access alone your operations show on the timers page only.

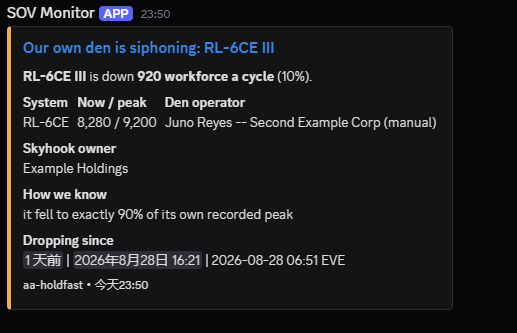

Alerts

Every moment appears three times: how far away it is, the reader's local time, and EVE time. Discord renders the first two per viewer — which is why they are in Chinese above and will not be for you — and the third is the same for everyone.

Per-category routing, so fuel warnings and "something is being shot" can go to different channels. A category nobody has routed goes to every enabled webhook, so a fresh install alerts somewhere. Once channels are ticked for it, it goes only there: if they are all deleted or switched off it goes nowhere rather than to every channel, and the settings and Webhooks pages list it until it is routed again. A webhook Discord answers 404 (deleted) or 401 (token reset) is switched off automatically with the reason shown on the Webhooks page; ticking Enabled again clears it. A 429 or 5xx is retried on the next run. Thresholds and switches live on each section's settings page, not in local.py. A webhook can mention Auth groups instead of @here — pick them on the Webhooks page; each needs a Discord role of the same name, which Auth's Discord service creates. A webhook URL must be Discord's own (https://discord.com/api/webhooks/..., or the discordapp.com, canary and PTB spellings); the form refuses anything else, here and in Django admin, since the server posts every alert to whatever is saved there. The URL is the channel's password, so once saved it is only ever shown masked (https://discord.com/api/webhooks/1234…/…abcd); leave the field empty when editing to keep it, or paste a new one to replace it.

python manage.py holdfast_test_alerts             # one sample of every alert
python manage.py holdfast_test_webhook
python manage.py holdfast_update                  # sync now, in the foreground
python manage.py holdfast_import_dens dens.csv    # load a den census

holdfast_update runs every scheduled job once, in the schedule's order: owners, den characters (idle ones too), den slots, workforce tracking, planet names, cost indices, campaigns, the sov map, raidable skyhooks, then alerts. A step that fails is reported and the rest still run. --owner PK syncs one owner, even a disabled or out-of-scope one; --skip-dens, --skip-public (the four public routes) and --skip-alerts leave those parts out; --budget sets the detail calls per owner. Only the alert-log prune is left to beat.

holdfast_import_dens takes planet,owner,corporation,hostile and records a den on each matching slot. Rows whose planet does not match are reported rather than guessed at — planet names are full of characters a survey sheet gets wrong (0 for O, O for Q). Add --clear-missing for a full census, --dry-run to preview.

Rate limiting

ESI meters in tokens, not requests: a 2xx costs two, a 304 costs one. The corp-structure bucket holds 300 tokens per 15 minutes, keyed on application and character together — and an Auth install has one ESI application, so that bucket is shared with aa-structures and corptools on your own site, not with anyone else's.

Each run pulls both listings (they decide what exists) and spends HOLDFAST_DETAIL_CALLS_PER_RUN detail calls on whatever has gone longest without one. At the default 60 that is 60 x 2 + 2 x 2 = 124 tokens, 41% of the bucket, and a 150-structure corp refreshes fully in about 40 minutes — inside the hour CCP caches these routes anyway. That rotation is why the owner sync runs every 15 minutes: the listings change at most hourly, and most runs read the same two again for 4 tokens. Structures awaiting a first detail pull show as queued.

Settings

All optional; most tuning belongs on the in-app settings pages instead.

HOLDFAST_ESI_COMPATIBILITY_DATE = "2026-08-18"   # must be >= 2026-05-19
HOLDFAST_DETAIL_CALLS_PER_RUN = 60               # per owner, per run
HOLDFAST_DEN_DETAIL_CALLS_PER_RUN = 10
HOLDFAST_SKYHOOK_MIN_UNSECURED = 100             # fallback; see per-reagent bars
HOLDFAST_TRACK_EXTRA_ALLIANCE_IDS = []           # tracked alongside the alliance on the SOV settings page
HOLDFAST_OWNER_SYNC_JITTER_SECONDS = 120
HOLDFAST_PLANET_RESOLVE_PER_RUN = 60
HOLDFAST_DEN_NOTIFICATION_MAX_AGE_HOURS = 24      # an older den attack is neither announced nor retried
HOLDFAST_DEN_FIRST_SYNC_GRACE_MINUTES = 90
HOLDFAST_DEN_IDLE_HOURS = 6                      # re-check a character with no dens this often
HOLDFAST_RAIDABLE_CACHE_SECONDS = 1800           # keep above the 10-minute refresh
HOLDFAST_STALE_PRUNE_DAYS = 14                   # alert log rows that can stop nothing
HOLDFAST_DEN_EVENT_RETENTION_DAYS = 30           # den notification text

Notes

• Logs go through Auth's extension logger, so they land in log/extensions.log beside every other app's, named by module (holdfast.core.alerts, ...).
• These routes need an X-Compatibility-Date of 2026-05-19 or later. Without one ESI answers 404 rather than saying why, and the old /latest/swagger.json spec is gone — which is why so little is built on them. django-esi sends the header; this app pins its own date.
• A tactical operation's dungeon_type_id indexes dungeons, not inventory types, so it is shown as a number. Nothing names a dungeon.
• aa-structures parses skyhook notifications and builds timers from them. It does not read the structure routes, so it cannot see fuel, reagent stock or theft windows. The two complement each other.

Data protection

Beyond ESI structure data, Holdfast keeps:

Data	About	Kept
Den notification text: attacker character, corporation and alliance ids	anyone, members or not	HOLDFAST_DEN_EVENT_RETENTION_DAYS (30), pruned daily
Hand-recorded den owners and corporations (den slots, CSV import)	anyone, as typed by a manager	until edited, or the slot goes
Timezone and contact note	members, entered by themselves	until the user is deleted
Den claims and decisions	members	as history, also after the slot goes

Den officers see the timezone, note, alts and Discord name (read from Auth's Discord service, not stored here) of the people running a den or holding a claim on their ground. Den attack alerts post the attacker's corporation or alliance name to Discord. The alert log holds only keys, pruned after HOLDFAST_STALE_PRUNE_DAYS once they can no longer stop an alert repeating.

Upgrade

pip install -U aa-holdfast
python manage.py migrate
python manage.py collectstatic --noinput
supervisorctl restart myauth:

Read the CHANGELOG first. The schedule comes from the package, so new or retuned beat entries arrive with the restart.

Uninstall

In this order — beat keeps its schedule in the database, so the rows go before the tables or it keeps running tasks against tables that are gone; migrate holdfast zero needs the app still installed; and local.py imports holdfast.schedule, so settings stop loading if the package goes first:

1. Delete the two holdfast.schedule lines from local.py, and any line that retunes a holdfast_ entry, so a restart does not put the schedule back (a leftover retune would fail to load without them).
2. In python manage.py shell, stop the schedule:

from django_celery_beat.models import PeriodicTask
PeriodicTask.objects.filter(name__startswith="holdfast_").delete()

1. supervisorctl restart myauth:, and give the workers a few minutes to finish any Holdfast task already queued.
2. python manage.py migrate holdfast zero, and step 5 straight after: until that restart, the sidebar's Holdfast badges have no tables to count.
3. Delete INSTALLED_APPS += ["holdfast"] (keep eveuniverse if another app uses it), then supervisorctl restart myauth:.
4. In python manage.py shell, remove what Auth keeps by name:

from django.apps import apps
from django.contrib.contenttypes.models import ContentType
from django.core.cache import cache

ContentType.objects.filter(app_label="holdfast").delete()  # permissions and grants go with them
cache.delete("holdfast:sov_map_tracked")
if apps.is_installed("charlink"):
    apps.get_model("charlink", "AppSettings").objects.filter(app_name="holdfast_tools").delete()

Not remove_stale_contenttypes --include-stale-apps: that removes every stale app's content types, not only Holdfast's. 7. pip uninstall aa-holdfast, and restart once more.

ESI tokens stay with django-esi, where other apps may use them.

Design notes

• One alliance per install, no corporation tier. Officers and managers see every registered corporation of the tracked alliance: fuel, timers and dens are run across corporations, so a corporation view would hide what the job needs. Separate audiences need separate Auths.
• ESI is fetched here, not read from corptools. corptools needs a corporation audit per corporation, syncs on its own cadence, and holds no skyhooks, raidable list, sov map or campaigns, which would have to be fetched here anyway.
• Django admin is for superusers. It applies the Webhooks page's URL rules and shows a claim's status read-only. It still skips the Tokens page's alliance check — an owner outside the tracked alliance just sits unsynced — and lets you edit synced rows, which the next sync overwrites.
• A corporation token outlives its registrant's permission. An owner keeps syncing with the token it was registered with after that user loses manage_owners, until a manager disables it on the Tokens page: the permission is checked when registering, not on every sync.
• CI runs sqlite. MariaDB, MySQL and PostgreSQL are not tested.

Development

python runtests.py          # sqlite, no Auth project needed
ruff check holdfast tests

docs/README.md covers the demo seeder, the screenshot script, and docs/mutate_structure.py, which breaks each structural rule on purpose to check the test guarding it actually fails.
